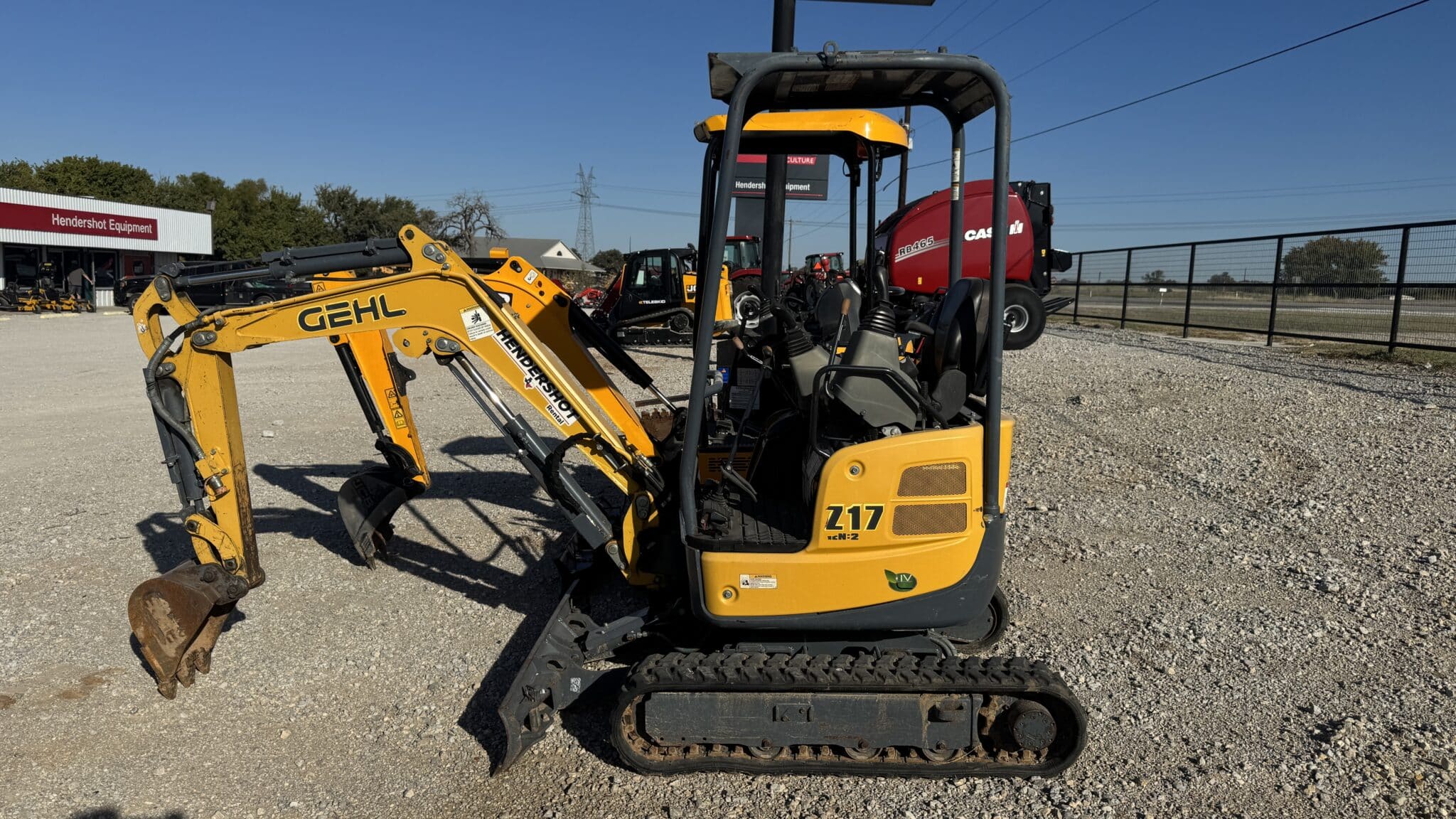

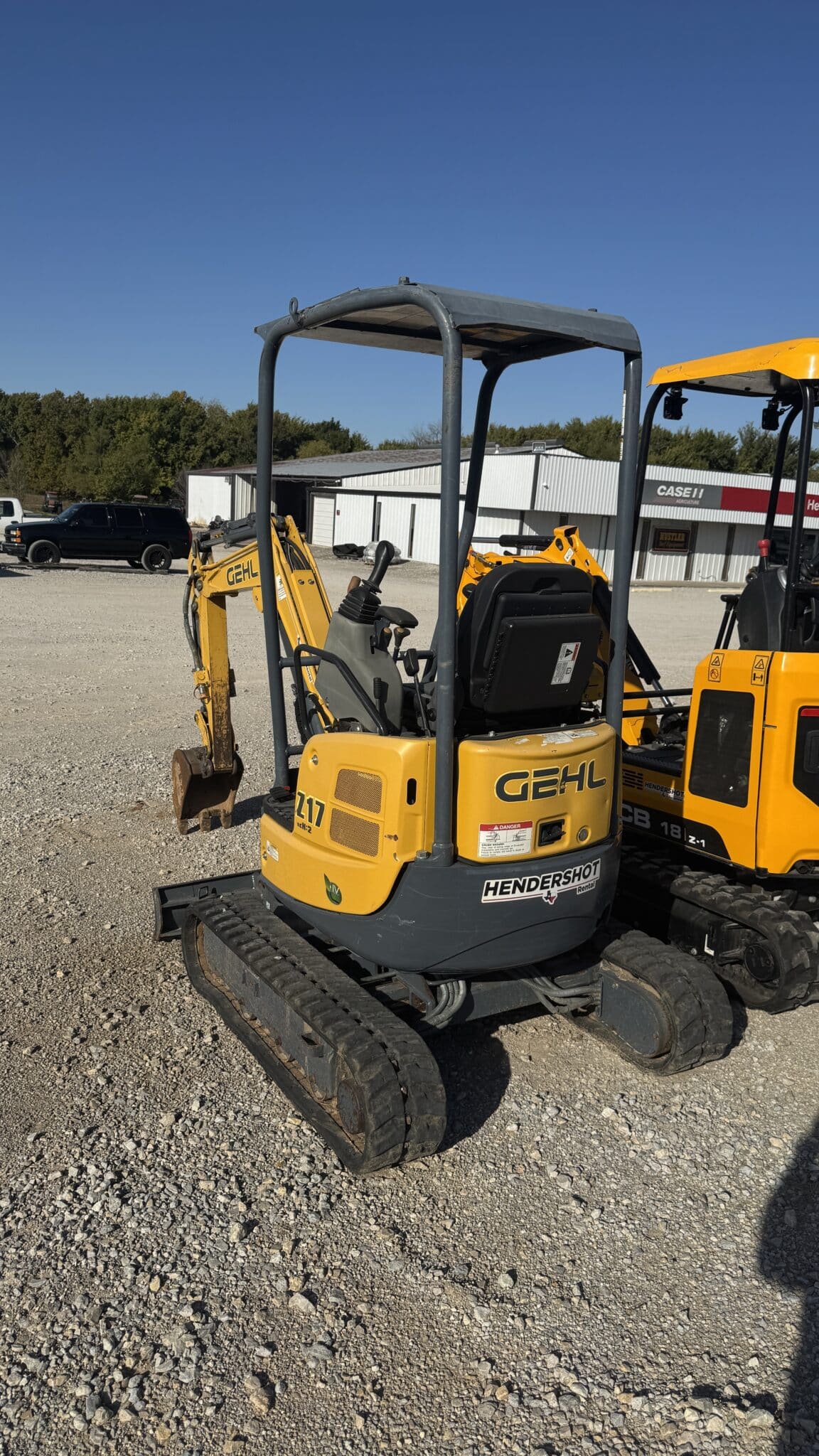

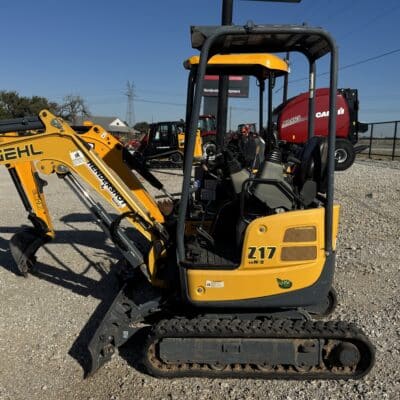

2018 Gehl Z17 GEN:2 Compact Excavator

Description

2018 Gehl Z17 GEN:2 Compact Excavator at Hendershot Equipment in Stephenville & Decatur, TX

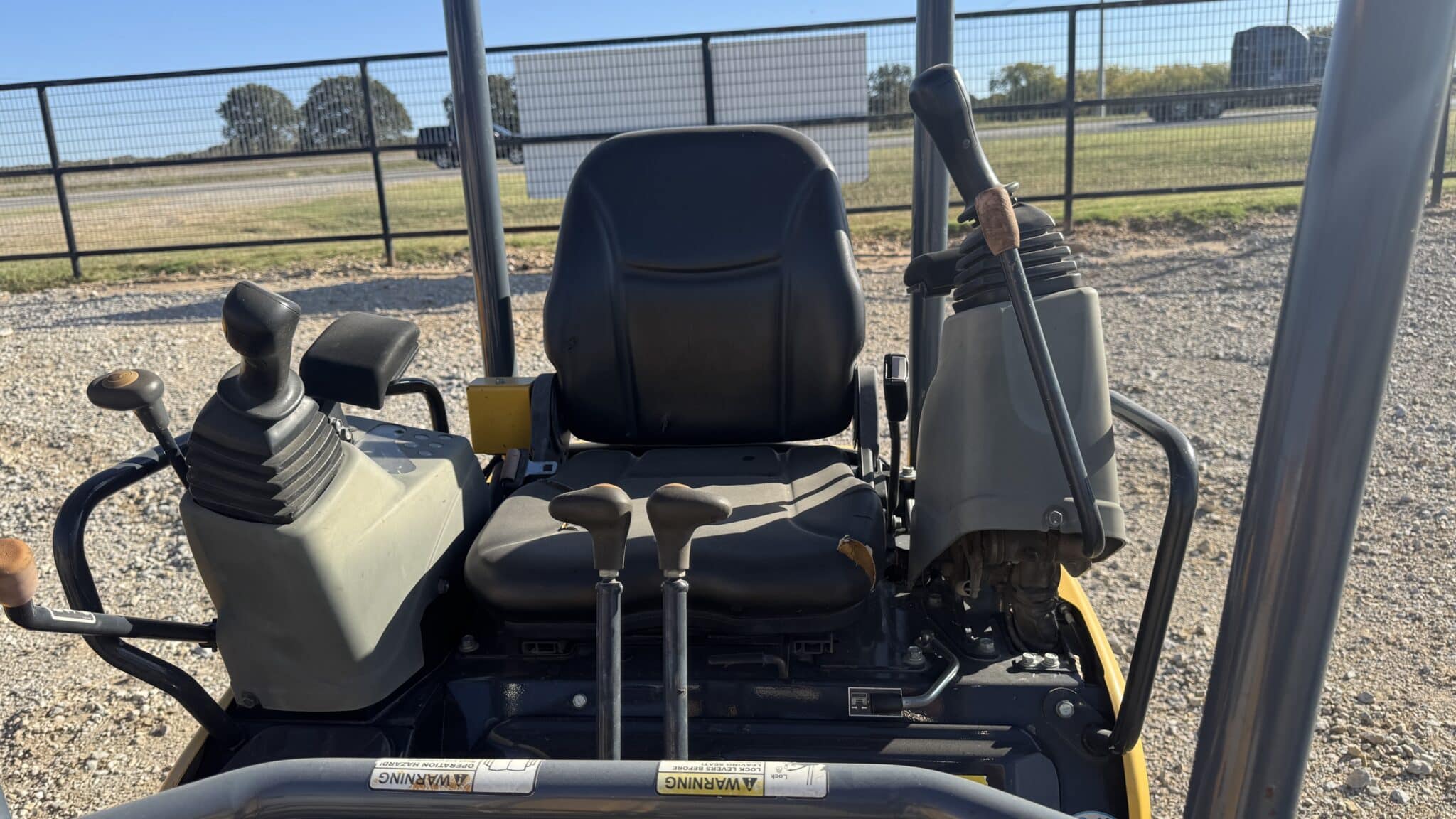

Operator's Cabin

The ergonomic operator's cabin on the Gehl Z17 GEN:2 Compact Excavator provides excellent visibility and easy entry and exit. Walk-through canopy for easy entry and exit. Excellent visibility in all directions allows safe and efficient operation. Rear mirror certainly provides a view of the back and side of the machine for additional safety. Work lights and integrated boom light enhances the operator's view after dark.

Controls

Controls on the Z17 GEN: 2 construction equipment - ergonomically designed and easy to use. Also the large travelling pedals are easy to press and allow confident, reliable work. Pilot operated joystick controls - operated by simple wrist movements. One-way auxiliary functions controlled by a foot pedal. Allowing optimal control of high-flow attachments. The operator can easily select from ISO or standard operating control patterns with the flip of a mechanical lever.

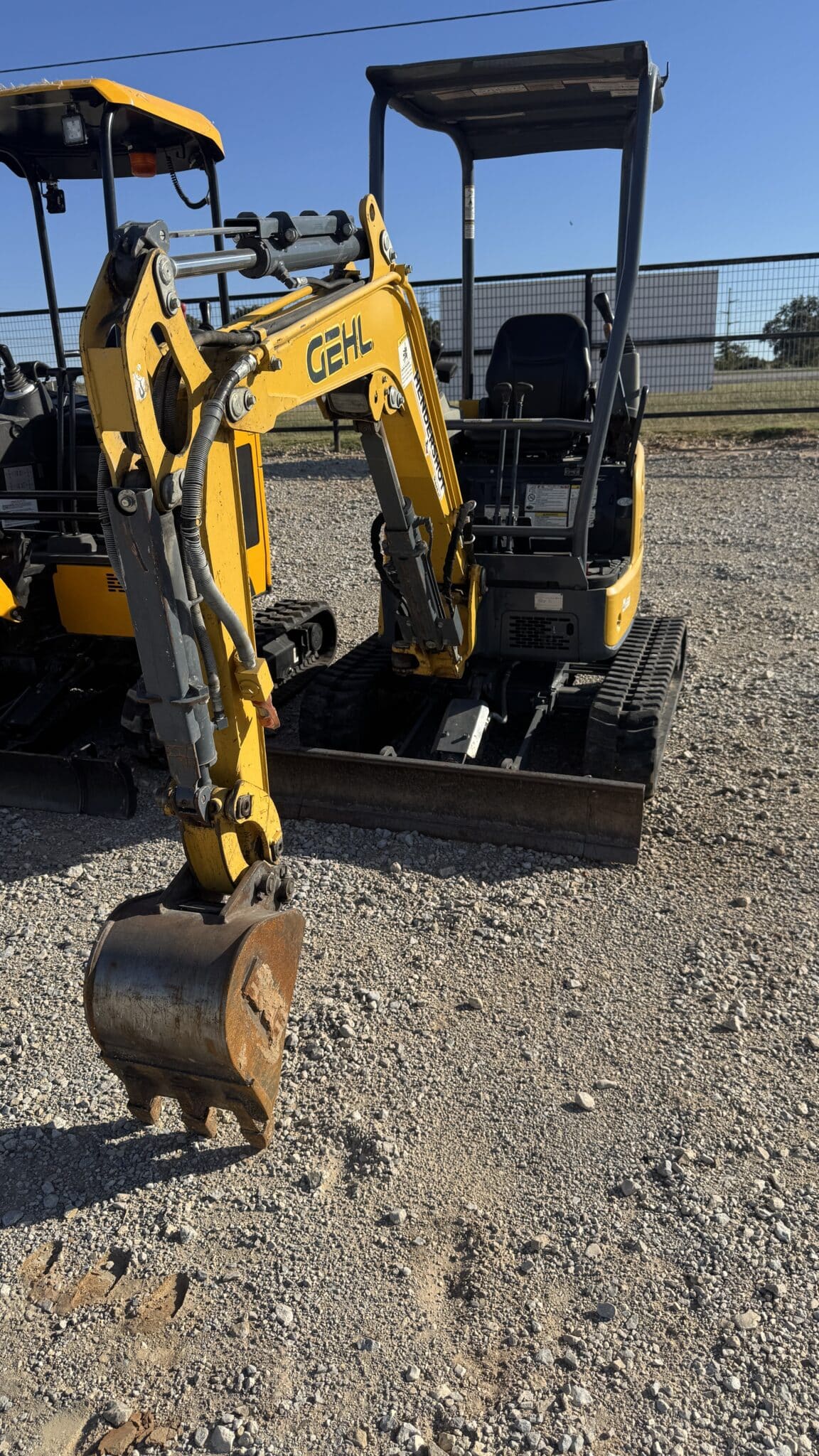

Boom

• Gehl Z17 Boom
• Rugged, high-strength boom incorporates features to protect and extend the life of moving parts and components.
• Precision welded boom constructed with thick side plates.
• Reinforced by contoured transition plates.
• Heavy-duty sliding cylinder guards protect exposed cylinder rods from damage.
• Integrated boom light also illuminates the work area and allows for safe and effective operation after dark.
• Reliable single pin boom mount design for optimal durability and component life.

Undercarriage

• The undercarriage of the Z17 GEN: 2 designed with serviceability and longevity in mind.
• Staggered tread and mandrel design combined with shorter track pitch reduces vibration.
• Long tracks certainly provide a smoother ride over rough terrain.
• Short-pitched tracks to reduce wear, fatigue and damage.
• Angled crawler frame reduces soil buildup on the undercarriage, extending the life of rollers and tracks.
• Tracks hydraulically extend to 4'2" (1280 mm) to enhance stability. Retract to 3' 1" (950 mm) for passageway through doors and gates.
• Width - Extended/Retracted (mm) 3'1" (950) to 4'2" (1280)Gehl Z17 Tracks Undercarriage

Engine

• Gehl Excavator Z17 Engine Access
• Built around a powerful, reliable emission-certified Yanmar Tier IV diesel engine. Proven technology also provides reliable operation and a fuel efficient system.
• Easy-starting, even in cold weather without the need for block heaters or starting fluid.Make Yanmar
• Model 3TNV74F-SPBV Tier IV
• Displacement (L) 60.6 cu.in. (0.993)
• Net Power (kW) @ rpm 14.5 hp (10.8) @ 2400
• Fuel Tank (L) 5.3 gal. (20)
• Fuel Consumption (L/hr) 0.53 gal./hr. (2)

Hydraulics

• Advanced hydraulic system on the Z17 GEN: 2. Hydraulic system - designed to enhance engine performance, certainly resulting in a more efficient system.
• Two variable pumps and two gear pumps also combine oil and redirect the flow where needed. Allowing for simultaneous operation without loss of power.
• Two-way and one-way auxiliary flow valve with direct-to-tank bypass valve feature is standard equipment.
• Also, Swing System Pressure (bar) 2,103 psi (145)
• Oil Cooler Standard
• Hydraulic Tank (L) 6.6 gal. (25)Gehl Z17 Hydraulics

Atachment System

Full line of Edge attachments and accessories. Certainly making their Z17 GEN: 2 the most versatile machine on the job site. Popular Z17 GEN: 2 attachment are augers, breakers, buckets, compaction plates, thumbs, quick attach couplers.
